3 Axis CK6140 CNC Lathe Machine 808D Controller Tool As Hub Shaping

Model Number : CK6136/CK6140/CK6150

Place of Origin : china

MOQ : 1 pieve

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 10 pcs/month

Delivery Time : 25-40 days

Packaging Details : Standard export packaging

Name : CK6140 CNC Lathe machine

Condition : New

Dimension(L*W*H) : 2320*1400*1700mm

Weight (KG) : 1800

Contact Now

3 Axis CK6140 CNC Lathe Machine 808D Controller Tool Used as Hub Shaping

1- Longitudinal and cross feeds are effected by ball leadscrews driven by servo motors.

2- Either vertical 4-station or horizontal 6 and 8-station tool post as well as gang type tool post can be selected.The post is located on precision contrite gears with a high repeated positioning accuracy.

3- Both chuck and tailstock are available with hydraulic or manual or pneumatic type.

4- The spindle system is high in rigidity and accuracy.

5- The surface of the bedways is supersonic frequency hardened and precision ground with a long service life.

Product Parameters

CNC Lathe Machine CK6140A

ITM	CK6140	CK6150A	CK6150T
Max. swing dia. over bed	400mm	500mm	500mm
Max. swing dia. over cross slide	245mm	280mm	290mm
Max. workpiece length	750/1000 mm	750/1000/1500mm	750/1000mm
Width of the bed	330 mm	400 mm	360mm
Diameter of spindle bore	Φ60mm	Φ82mm	Φ70mm
Spindle taper	MT6	1:20/ Φ90	1:20/ Φ90
Spindle nose	A2-6	Type of spindle head D-8	Type of spindle head D-8
Spindle speed	200~2500rpm	150~2500rpm	150-2000 rpm
Chuck size	250mm	250mm	250mm
Tool holder	4 station	4 station	4 station
Tool bar section	25x25mm	25x25mm	25x25 mm
Main motor power	5.5 kw	7.5 kw	7.5 kw
X/Z axis position accuracy	0.02/0.025mm	0.02/0.025mm	0.02/0.025mm
X/Z axis repeatability	0.01/0.012mm	0.01/0.012mm	0.01/0.012mm
X/Z axis torque	5/7.5N.m	6/10 N.M	6/10N.m
X/Z axis fast feeding speed	6/8M/MIN	8 /10M/MIN	8/10M/MIN
Tailstock sleeve travel	120mm	150mm	150mm
Tailstock taper	MT4	MT5	MT5
Dimension	2320/257014001700mm	2410/2660/316015601730mm	2660/291015601730
Weight	1800/2000KG	2800/3200/3500KG	2500/2800kg

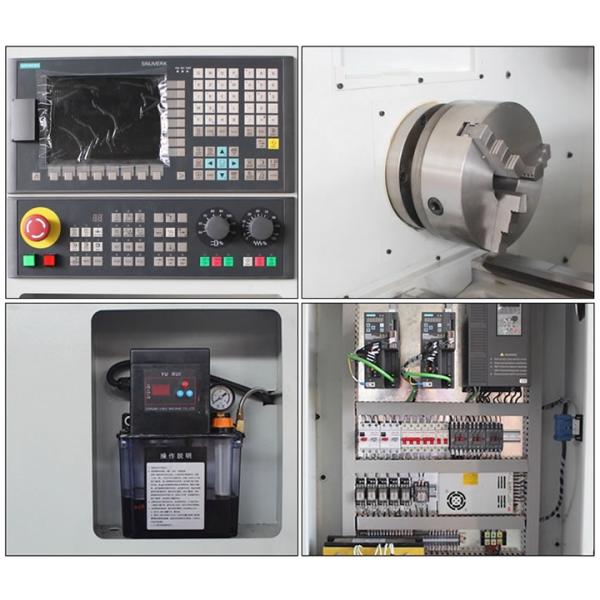

Standard Configuration

3 Axis CK6140 CNC Lathe Machine 808D Controller Tool As Hub Shaping

1- System:GSK928TD-L, servo motor and drive.

2- Manual 3-jaw chuck.

3- 4-station electric tool post.

4- Manual tailstock

5- Cooling system.

6- Lighten system.

7- Automatic lubrication system.
